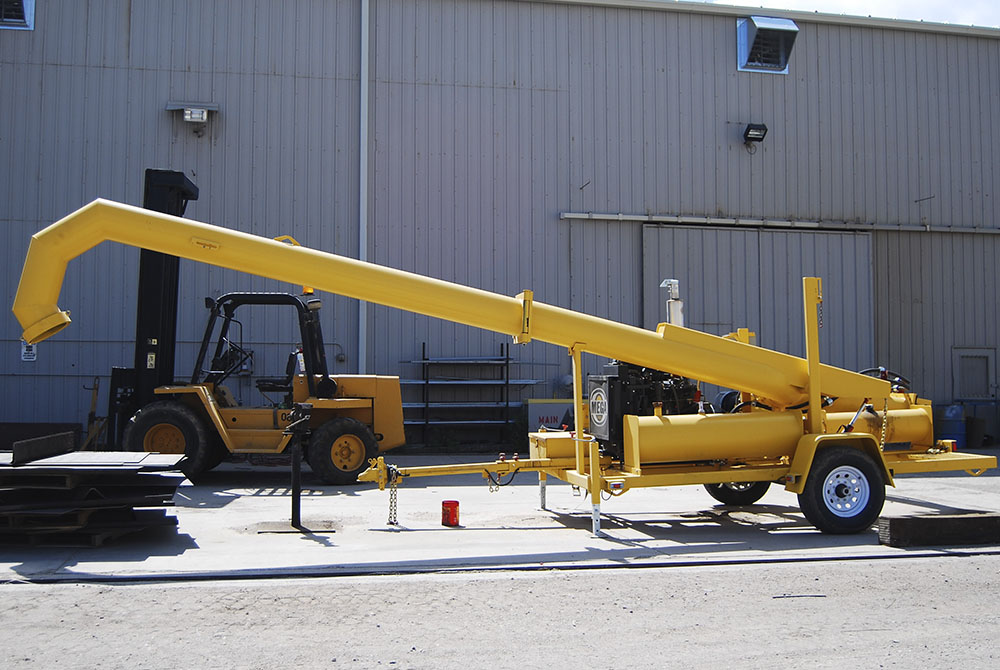

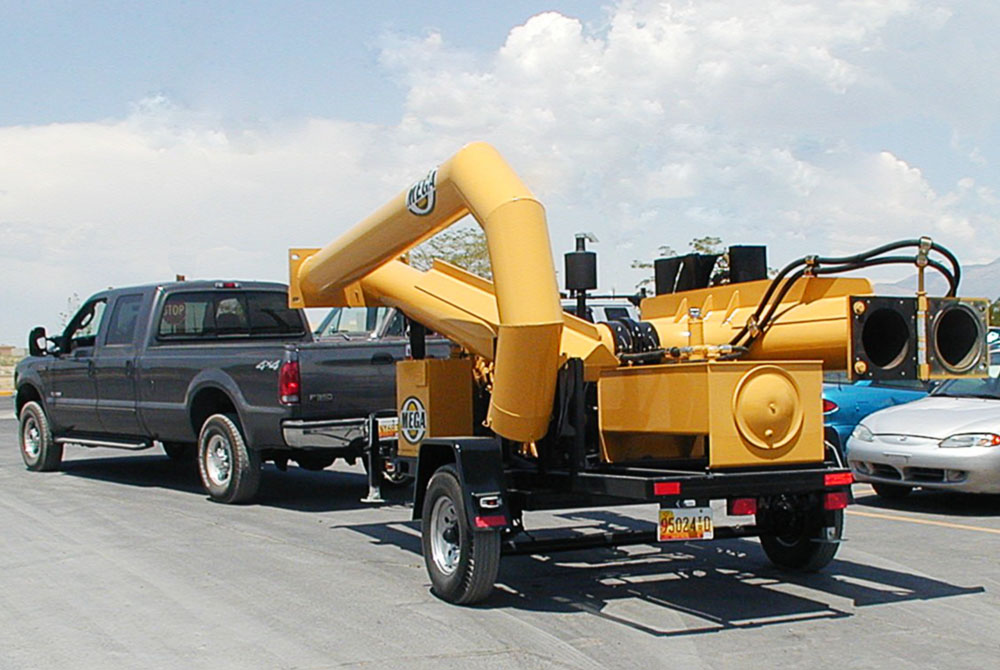

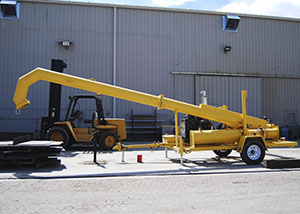

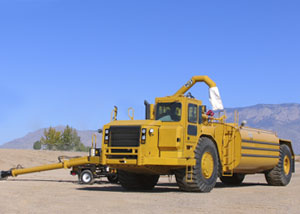

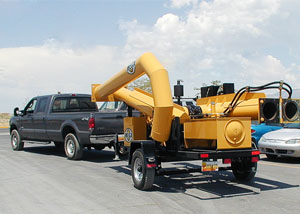

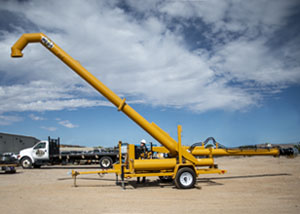

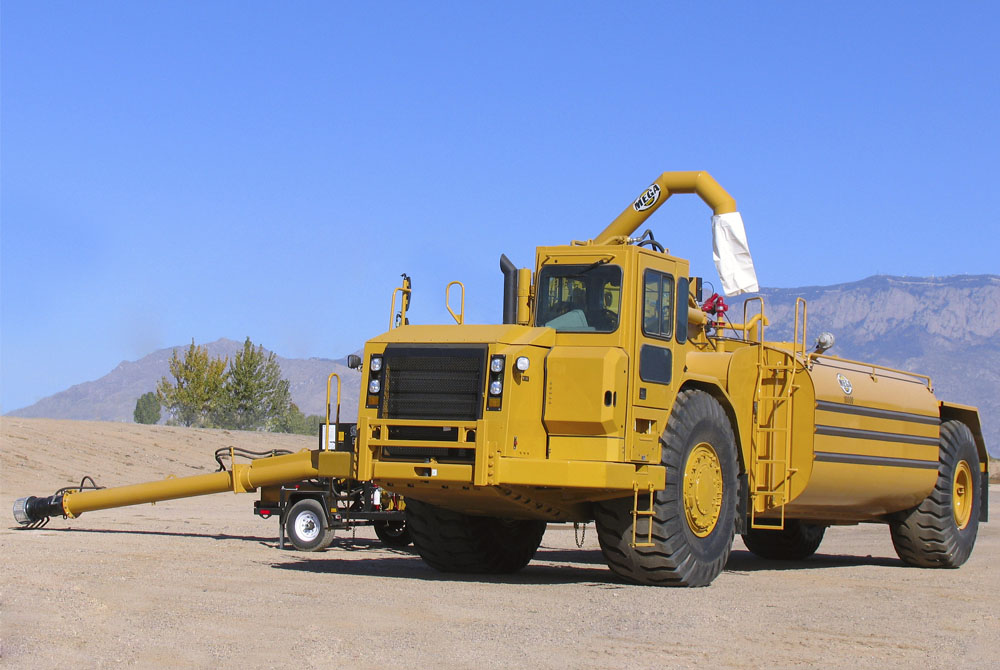

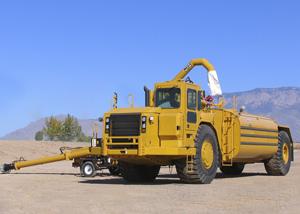

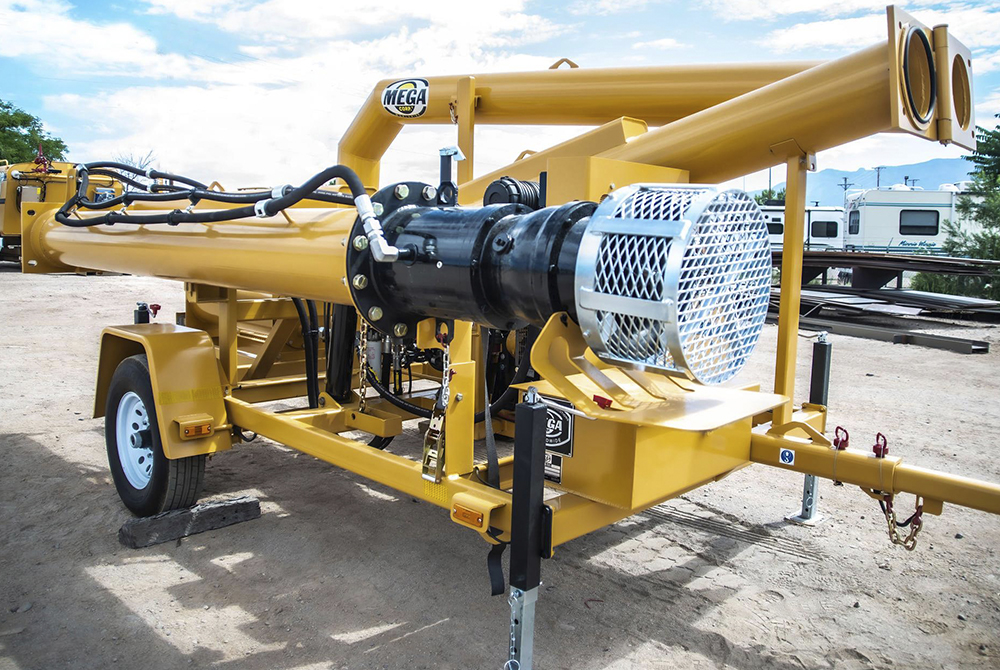

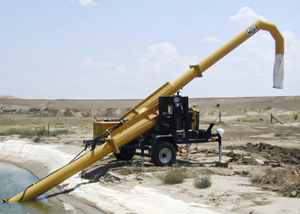

The MMP is the best solution to rapidly fill water distribution equipment from ponds, ditches, or other sources of water in remote areas where there is limited availability. The rugged and trouble-free MMP is highway-ready for easy transportation to the worksite and can be set up by one person. A diesel engine-driven hydraulic motor supplies power to the axial flow water pump, intake and discharge piping lift cylinders and all controls with a diesel engine. With a nominal flow of 3,500 gpm, the MMP can fill tanks in minutes. Currently, the MMP design incorporates a reliable Caterpillar® C2.2 diesel engine.
Please contact our Mega Sales Team for shipping or other information abour our MMP product.
| Mega Model | Engine Type |
|---|---|
| MMP | Caterpillar Diesel |
MMP mobile pumps include the following standard features. For additional information, contact our Mega Sales Team.
| Caterpillar Diesel Engine C2.2 Tier IV |
| D.O.T.* Lighting and Reflectors |
| Diesel Fuel Tank Capacity |
| Discharge Sock |
| Discharge Tube Stream Straightener |
| Eco-Friendly AW46 Hydraulic Oil |
| Engine Throttle, Controls and Instrumentation Cabinet |
| Folding Tongue Provides Optimal Access for Filling Water Equipment |
| Full Fenders |
| Hitch Assembly Rated for 4,536 kg / 10,000 lb with 59 mm / 2-5/16 inch Ball |
| Hydraulic Manifold with Test Ports |
| Hydraulic Oil Filter |
| Hydraulic Reservoir with Fluid Level Gauge |
| Hydraulically-Driven Axial Flow Water Pump |

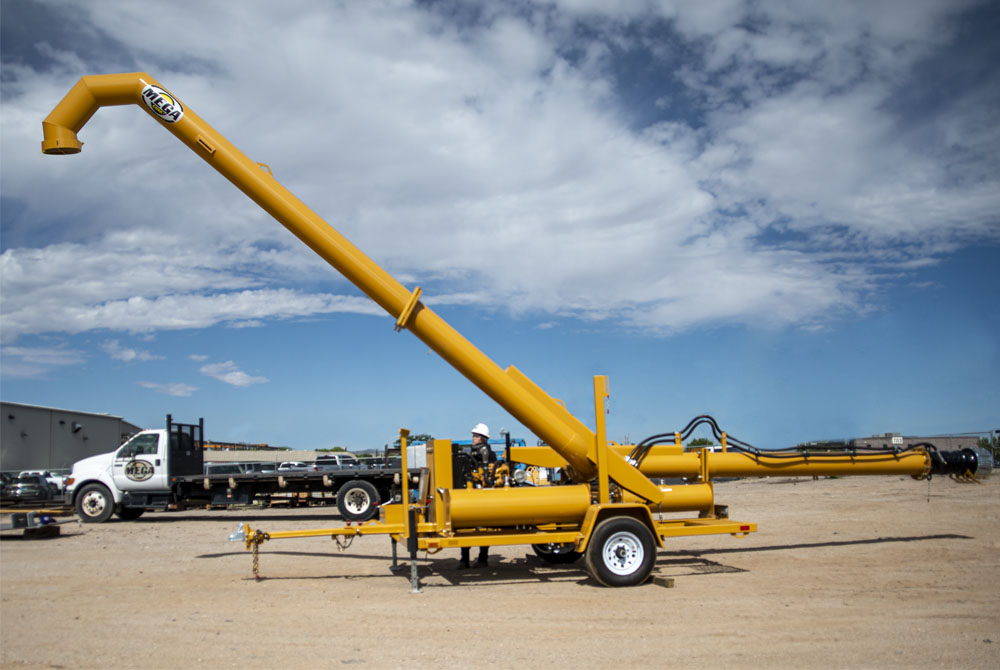

| Independently Adjustable Intake and Discharge Tubes |
| Leveling Jacks |
| Lifting Eyes |
| Lockable Tool Storage Area in Battery Box |
| Maintenance Free 12V Battery |
| Radial Range E Load Tires |

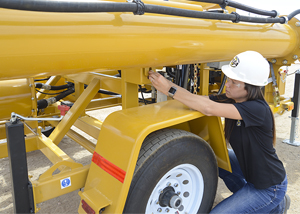

| Single Person Transport and Setup |
| Technical Manuals. Please visit our Technical Manuals Page for more information. |
| Trailer Axle Lockable Rated to 2,722 kg / 6,000 lb |

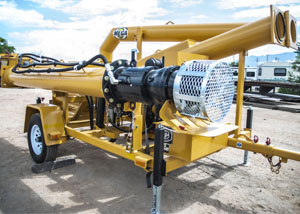

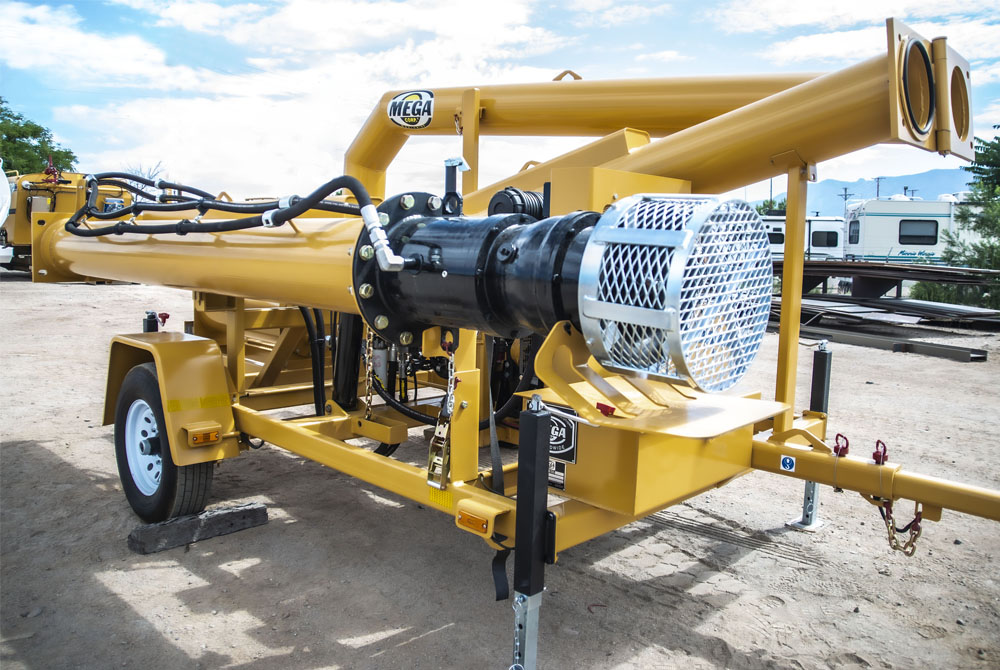

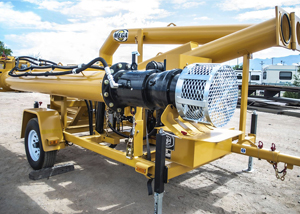

| Trash Screen on Pump Inlet |
Your standard MMP tank can be configured with these optional features. Availability and specifications may vary by model. For additional information, contact our Mega Sales Team.
| Additional sets of manuals are available for purchase. Please visit our Technical Manuals Page for more information. |
| Electric Brakes |
| Hitch Assembly with Pintle Eye or Clevis Hitch |
| Securable Spare Tire and Rim |
| Security Package Includes Lockable Reservoir Caps, Battery Box and Control Cabinet |
